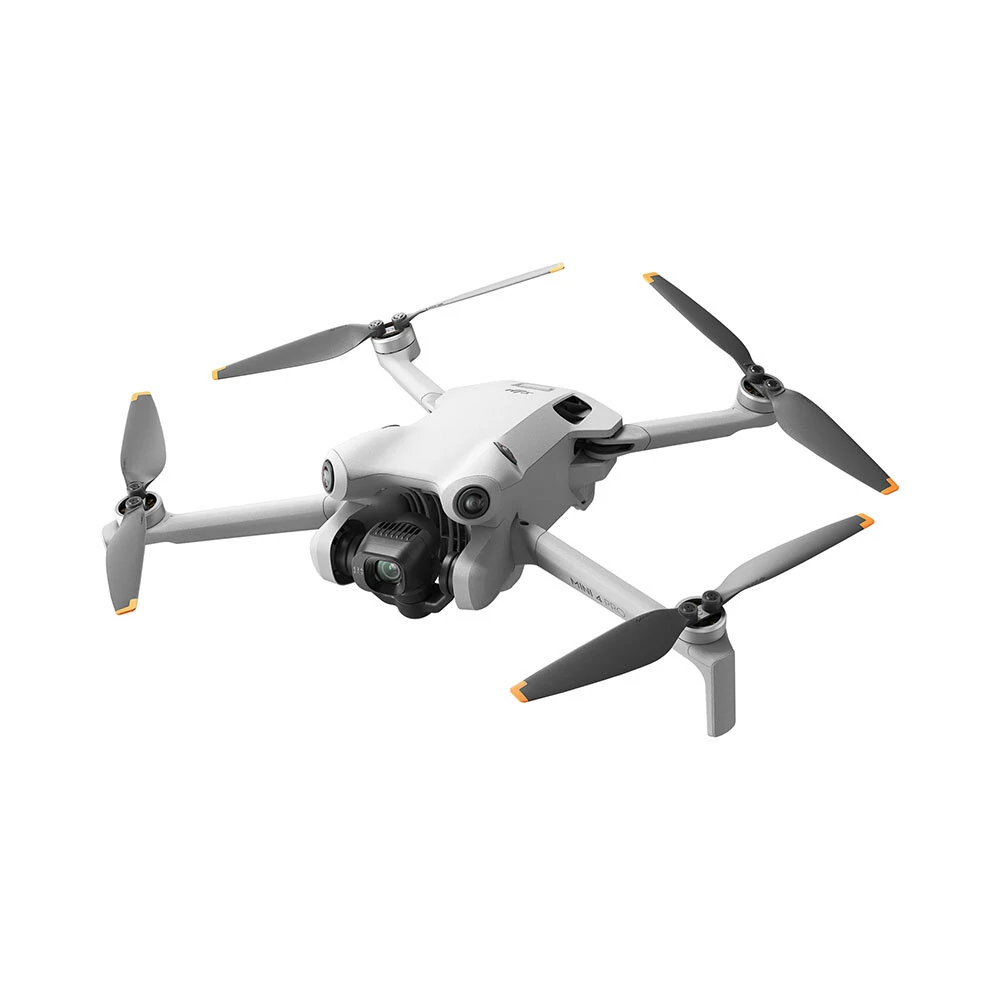

MINI 4 PRO

Specifications:

Aircraft

Takeoff Weight

< 249g

Dimensions

Folded (without propellers): 148×94×64 mm (L×W×H)

Unfolded (with propellers): 298×373×101 mm (L×W×H)

Max Ascension Speed

5 m/s (S Mode)

5 m/s (N Mode) 3 m/s (C Mode)

Max Descent Speed

5 m/s (S Mode)

5 m/s (N Mode) 3 m/s (C Mode)

Max Horizontal Speed

(near sea level, no wind)

16 m/s (S Mode)

12 m/s (N Mode) 12 m/s (C Mode)

Max Takeoff Altitude

With DJI Mini 4 Pro Intelligent Flight Battery: 4000 m

With DJI Mini 3 Series Intelligent Flight Battery Plus: 3000 m

Max Flying Time

34 mins (with Intelligent Flight Battery and measured while flying at 21.6 kph in windless conditions)

45 mins (with Intelligent Flight Battery Plus and measured while flying at 21.6 kph in windless conditions). Only available in select countries.

Max Hovering Time

30 mins (with Intelligent Flight Battery, no wind)

39 mins (with Intelligent Flight Battery Plus, no wind)

Max Flying Distance

18 km  (with Intelligent Flight Battery and measured while flying at 40.7 kph in windless conditions at 20 meters above sea level)

25 km  (with Intelligent Flight Battery Plus and measured while flying at 44.3 kph in windless conditions at 20 meters above sea level)

Max Wind Speed Resistance10.7 m/s (Level 5)Max Tilt Angle

35°

Internal Storage

2 GB

Operating Temperature-10° to 40° C (14° to 104° F)GNSSGPS + Galileo + BeiDouHover Accuracy RangeVertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GNSS Positioning)
Horizontal: ±0.1 m (with Vision Positioning), ±0.5 m (with GNSS positioning)

Gimbal

Mechanical RangeTilt: -135° to 80°
Roll: -135° to 45°
Pan: -30° to 30°Controllable Range

Tilt: -90° to 60°

Roll: -90° or 0°

Stabilization3-axis mechanical gimbal (tilt, roll, pan)Max Control Speed (tilt)100°/sAngular Vibration Range±0.01°

Sensing System

Sensing Type

Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft

Forward

Measurement Range: 0.5-18 m

Detection Range: 0.5-200 m Effective Sensing Speed: Flight Speed ≤ 12 m/s FOV: Horizontal 90°, Vertical 72°

Backward

Measurement Range: 0.5-15 m

Effective Sensing Speed: Flight Speed ≤ 12 m/s FOV: Horizontal 90°, Vertical 72°

Lateral

Measurement Range: 0.5-12 m

Effective Sensing Speed: Flight Speed ≤ 12 m/s FOV: Horizontal 90°, Vertical 72°

Upward

Measurement Range: 0.5-15 m

Effective Sensing Speed: Flight Speed ≤ 5 m/s FOV: Front and Back 72°, Left and Right 90°

Downward

Measurement Range: 0.3-12 m

Effective Sensing Speed: Flight Speed ≤ 5 m/s FOV: Front and Back 106°, Left and Right 90°

3D Infrared Sensor

Measurement Range: 0.1-8 m (reflectivity > 10%)

FOV: Front and Back 60°, Left and Right 60°

Operating Environment

Forward, Backward, Left, Right, and Upward:

Surfaces with discernible patterns and adequate lighting (lux > 15) Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)

Camera

Image Sensor1/1.3-inch CMOS
Effective Pixels: 48 MPLensFOV: 82.1°
Format Equivalent: 24 mm
Aperture: f/1.7
Focus Range: 1 m to ∞ISO Range

Video

Normal and Slow Motion: 100-6400 (Normal) 100-1600 (D-Log M) 100-1600 (HLG)

Night: 100-12800 (Normal)

Photo 12 MP: 100-6400 48 MP: 100-3200

Shutter Speed

12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)

48MP Photo: 1/8000-2 s

Max Image Size8064×6048Still Photography Modes

Single Shot: 12 MP and 48 MP

Burst Shooting: 12 MP, 3/5/7 frames 48 MP, 3 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames at 0.7 EV step 48 MP, 3 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s 48 MP, 5/7/10/15/20/30/60 s

Video Resolution

H.264/H.265

4K: 3840×2160@24/25/30/48/50/60/100*fps FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps

Max Video BitrateH.264/H.265: 150 MbpsDigital Zoom

12MP Photo: 1-2x

4K: 1-3x FHD: 1-4x

Supported File SystemsexFATColor Mode and Sampling Method

Normal:

8-bit 4:2:0 (H.264/H.265) HLG/D-Log M: 10-bit 4:2:0 (H.265)

Photo FormatJPEG/DNG (RAW)Video FormatMP4 (MPEG-4 AVC/H.264, HEVC/H.265)

Video Transmission

Video Transmission SystemO4Live View Quality

Remote Controller:

Up to 1080p/60fps (available when the aircraft is flying in Photo or Video mode) Up to 1080p/30fps (available when the aircraft is flying in Video mode) Up to 1080p/24fps (available when the aircraft is in standby mode on the ground)

Operation Frequency

2.400-2.4835 GHz

5.170-5.250 GHz

5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.1 GHz: < 23 dBm (CE)

5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

Max Transmission Distance

(free of interference)

FCC: 20 km

CE: 10 km

SRRC: 10 km

MIC: 10 km

Lowest Latency

Aircraft + Remote Controller: approx. 120 ms

Max Transmission Distance

(unobstructed, with interference)

Strong Interference: urban landscape, approx. 1.5-4 km

Medium Interference: suburban landscape, approx. 4-10 km

Low Interference: suburb/seaside, approx. 10-20 km

Max Transmission Distance (obstructed, with interference)

Low Interference and Obstructed by Buildings: approx. 0-0.5 km

Low Interference and Obstructed by Trees: approx. 0.5-3 km

Max Download Speed

O4:

10 MB/s (with DJI RC-N2) 10 MB/s (with DJI RC 2) Wi-Fi 5: 30 MB/s

Antennas4 antennas, 2T4R

Charging Hub

Compatible DJI Charger

DJI 30W USB-C Charger

or other USB Power Delivery Chargers (30 W)

Compatible DJI Batteries

DJI Mini 4 Pro Intelligent Flight Battery

DJI Mini 3 Series Intelligent Flight Battery/Intelligent Flight Battery Plus

Input

5 V, 3 A

9 V, 3 A

12 V, 3 A

Output (USB)Max Voltage: 5 V, Max Current: 2 ACharging TypeThree batteries being charged in seequenceAPPNameDJI FlyRequired Operating SystemiOS v10.0 or later Android v6.0 or laterSupported SD CardsSupported SD Cards

UHS-I Speed Class 3 or above is required.

A list of reccomended microSD cards can be found below

Battery:

Item Intelligent Flight Battery Intelligent Flight Battery Plus

Features:

Extended Battery Life: Enjoy up to 34 minutes of flight time, or upgrade to the Intelligent Flight Battery Plus to enjoy an extra-long 45-minute max flight time.

Upgrade to Omnidirectional Obstacle Sensing:DJI Mini 4 Pro is the first product of the Mini Series that can flexibly avoid and detect obstacles sooner with omni sensing. Even new pilots can fly worry-free.

20km FHD Video Transmission:Mini 4 Pro features DJI's O4 video transmission,enjoy smooth 1080p/60fps live feeds from up to 20 km.

①4K/100fps-With Slow Motion in 4K clarity, capture actions at 100fps;.②Night Shots-Improved algorithm effectively suppresses noise and facilitates clearer;.③1.07 Billion Colors-Enjoy the natural color gradations and delicate full-spectrum details.

ActiveTrack 360°:Tailor multiple tracking routes to fit any shooting scenario. Pro-level results are simple now..
